A70-SDP Wind Speed, Direction And Pressure Transmitter

$363.00$445.00

Clear

The Comptus combined ambient air temperature, humidity and pressure sensor probe provides output signals proportional to the condition(s) being monitored. These sensors are used in conjunction with electronic data collection systems or for input to control systems. They are readily combined with meter relays to provide custom controls. They operate on 12-24 VDC with RS485 output.

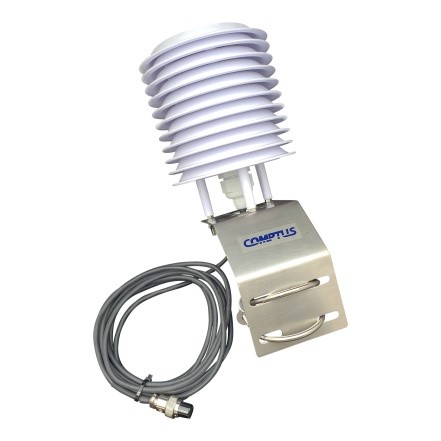

The devices are available as a sensor probe only, or can be combined with one of our radiation shield options.

Many types of industries use outdoor temperature, humidity and pressure sensors to improve facility response to outdoor environmental conditions. The sensors are designed with robust capabilities, providing stable and accurate results.

Technical Specification

Range

Humidity – 0-100% R.H.
Temperature – -40ºC to 60ºC
Pressure – 10-110kPa (100-1100 mbar)

Resolution

Humidity – 0.5% R.H.
Temperature – 0.1ºC
Pressure – 0.1 mbar

Accuracy

Humidity – ±3% R.H.
Temperature – ±0.5ºC
Pressure – ±1 mbar

Electrical

Power Supply – 12-24 VDC
Output Signal – MODBUS RTU – RS485
Current Consumption – <20mA

Operating Temperature

-40ºC to 60ºC

Ingress Protection

IP65/NEMA4

Storage Conditions

10ºC to 60ºC @ 20% to 90% R.H.

Weight

Probe 6.25” 120g / 4.2 oz (With Shield, 730g / 1.6 lbs)

Materials

ABS, Aluminum, Stainless Steel

Radiation Shield Dimensions

7”D x 12”H

Product Option

Humidity, Temp & Pressure, 12-24 VDC, RS485, Sensor Only, Humidity, Temp & Pressure, 12-24 VDC, RS485, Sensor w/ Radiation Shield
